Gallagher Panel Antenna 600 x 400mm for TWR Weigh Scales

The Gallagher Panel Antenna 600 x 400mm for TWR Weigh Scales: Hands Free EID Reading Built Into Your Weighing Setup

If you're running a TWR Weigh Scale and want to capture EID tag data without adding a separate reader or stopping to scan individual animals, the Gallagher Panel Antenna 600 x 400mm makes the whole process automatic. Mount it to the side of your crush or race, plug the 6 metre cable straight into your TWR Weigh Scale, and it starts reading EID tags as animals walk past or are being weighed without any calibration or fiddling required. No separate EID Tag Reader Controller needed, it draws power directly from the connected scale and gets to work straight away.

How the Gallagher Panel Antenna 600 x 400mm for TWR Weigh Scales Works in the Yards

The antenna panel is a fixed, hands free unit that automatically scans EID tags as animals move through your race or sit in the crush during weighing. With a read range of up to 1.2 metres, it picks up tags reliably without needing animals to slow down or stop in a specific spot. Tag numbers are recorded directly within the connected TWR Weigh Scale, keeping your EID data and weight data together in one place without any extra steps. It reads all ISO electronic identification ear tags and is compatible with both half duplex HDX and full duplex FDX-B tags, so whatever tagging system you're running it will work with what you've already got.

Simple to Install and Ready to Use With the Gallagher Panel Antenna 600 x 400mm for TWR Weigh Scales

Installation is straightforward and all the hardware you need is included in the box. Mount the panel to the side of your weigh location or race using the reinforced mounting hardware, connect the 6 metre cable to your TWR Weigh Scale, and you're ready to start collecting EID data. The antenna automatically tunes to your TWR Weigh Scale with no calibration required, which means there's no setup process to work through before it starts performing. The bright yellow polyurethane cables are easy to spot in the yards, and the high quality waterproof connectors give you a reliable and secure connection to your hardware that holds up in wet and muddy conditions.

Built to Handle Whatever the Farm Throws at It

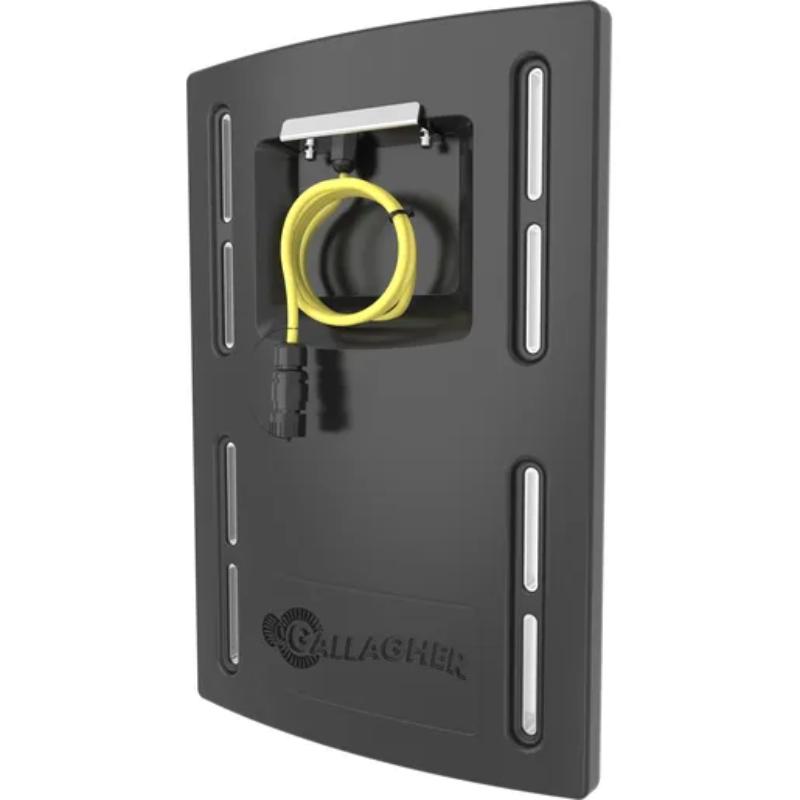

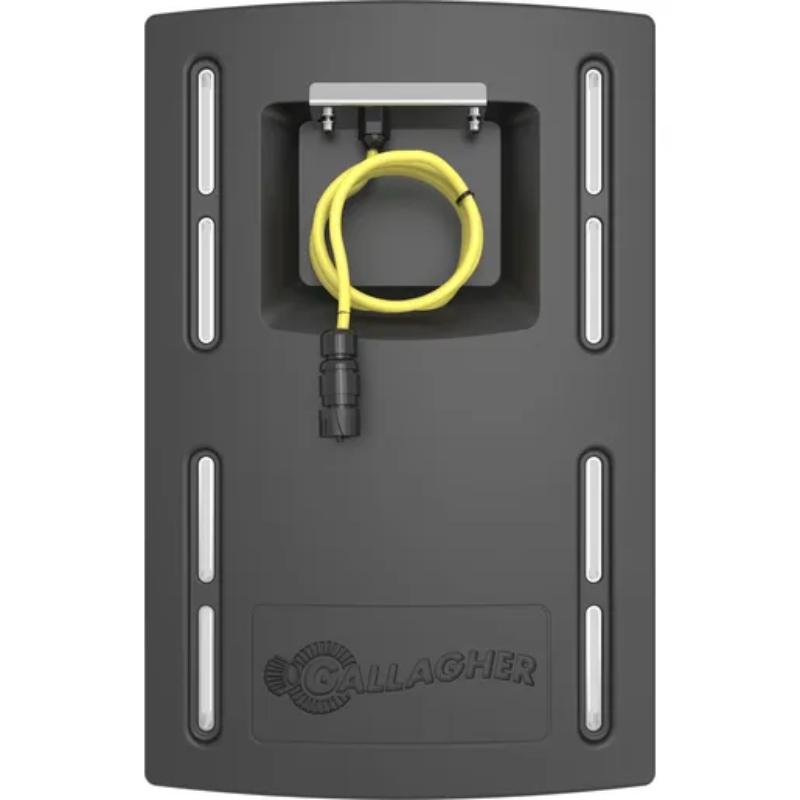

The panel itself features a fully sealed waterproof construction built to withstand harsh farming environments, so weather, dust, and the general punishment of daily yard work aren't going to cause any issues. Because the antenna is powered by the connected TWR Scale there's no battery to charge or replace, which removes one more thing to think about when you're in the middle of a big weighing session. The bright yellow coating also makes it easy to locate quickly in a busy yard setup.

Gallagher Panel Antenna 600 x 400mm for TWR Weigh Scales Key Specifications
