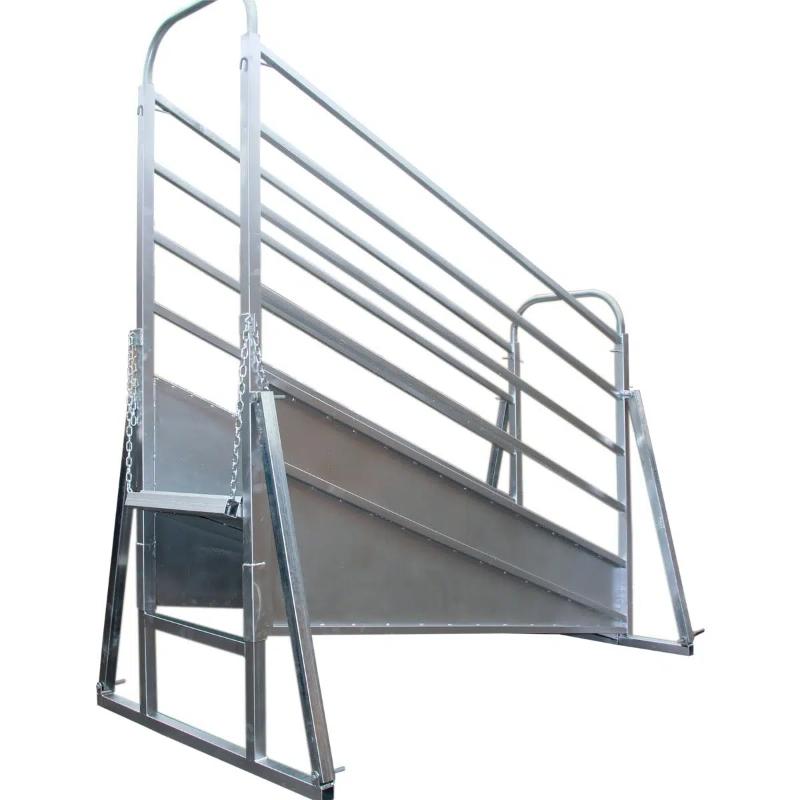

Adjustable Cattle Loading Ramp full view

Super Rack Adjustable Cattle Loading Ramp

by Super Rack
$2,499.00
  • ✓ Shipping Aus Wide - Call For A Shipping Quote
  • ✓ Get The Best Price Today. Call Us.
  • ✓ 30 Day Returns - No Restocking Fees
  • ✓ Get Help Now. Call 1800 574 122

Delivery Times and Costs

Notify me when back in stock

Introducing The Adjustable Cattle Loading Ramp

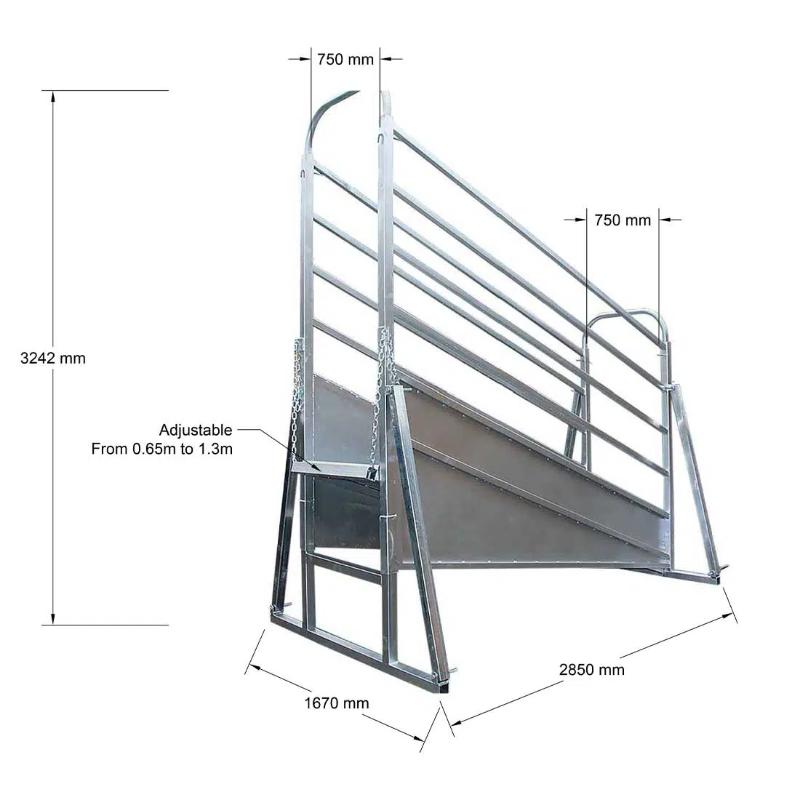

3242mm highx2850mm longx750mm wide (750mm wide internal clearance)
Manufactured from galvanised steel and the welds painted
Vertical frame tube 60x60x2mm
Top Side long tube 40x40x2m
Side galvanized sheet 1.6mm
Bottom sidelong tube 60x60x2mm
Galvanized footboard 2mm thick
With Frame tube 50x50x2mm, 40x40x2mm and 25x25x2mm tubes welded on the footboard.
U lugs: 100x70x4mm, pins on lugs
Weight is about 400kg/set
Adjustable height from 0.65m to 1.3m high
Weight capacity : 1000kgs

Description

Introducing The Adjustable Cattle Loading Ramp

3242mm highx2850mm longx750mm wide (750mm wide internal clearance)
Manufactured from galvanised steel and the welds painted
Vertical frame tube 60x60x2mm
Top Side long tube 40x40x2m
Side galvanized sheet 1.6mm
Bottom sidelong tube 60x60x2mm
Galvanized footboard 2mm thick
With Frame tube 50x50x2mm, 40x40x2mm and 25x25x2mm tubes welded on the footboard.
U lugs: 100x70x4mm, pins on lugs
Weight is about 400kg/set
Adjustable height from 0.65m to 1.3m high
Weight capacity : 1000kgs
