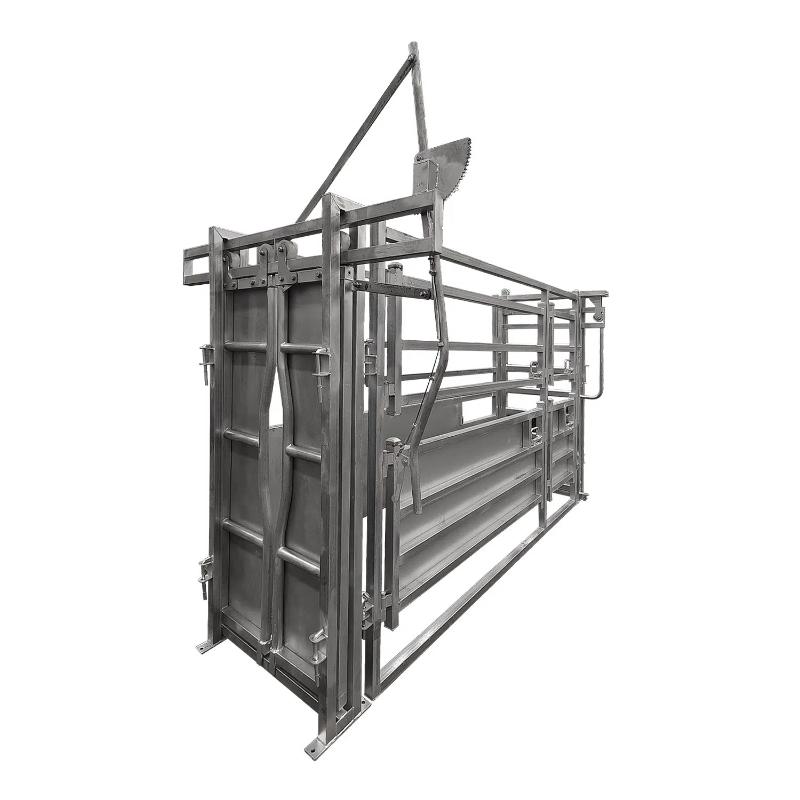

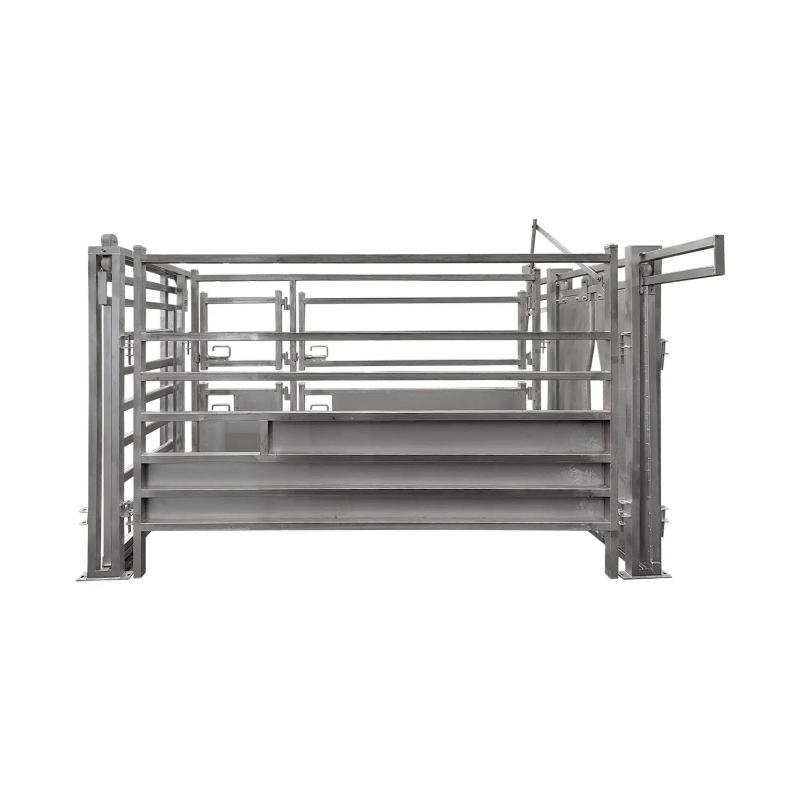

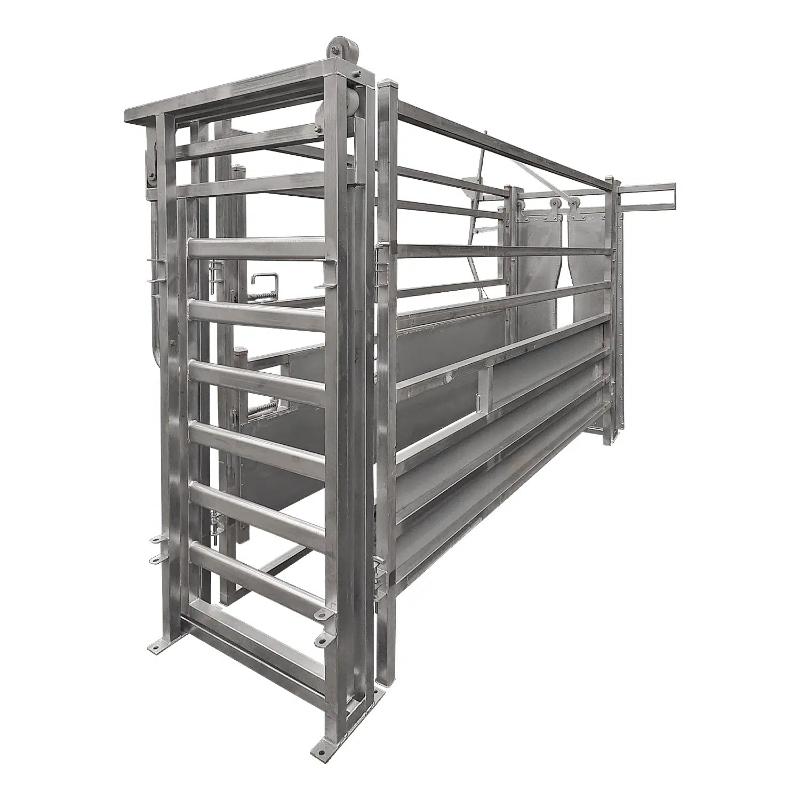

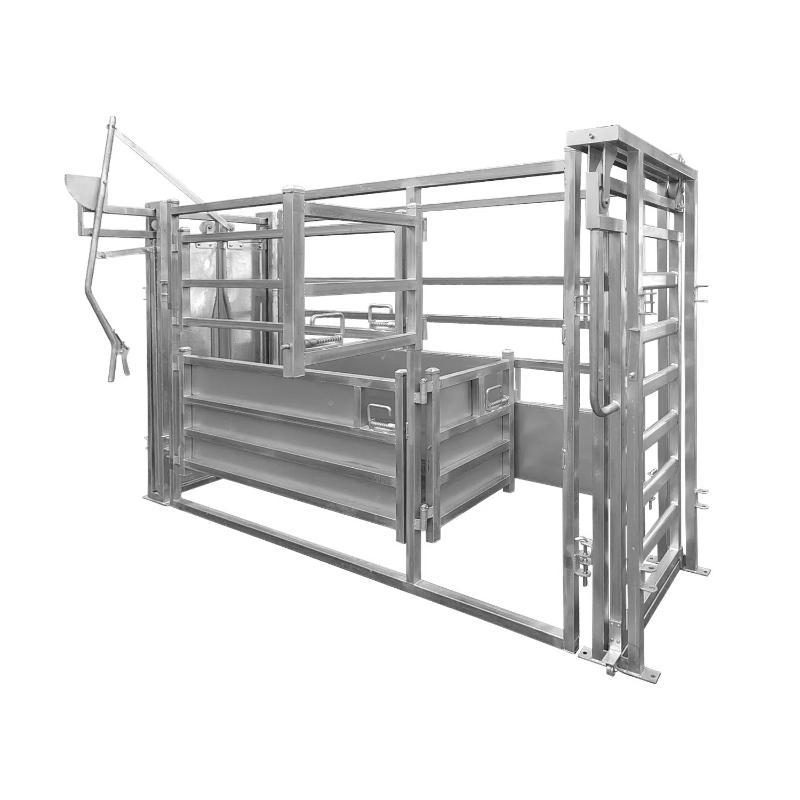

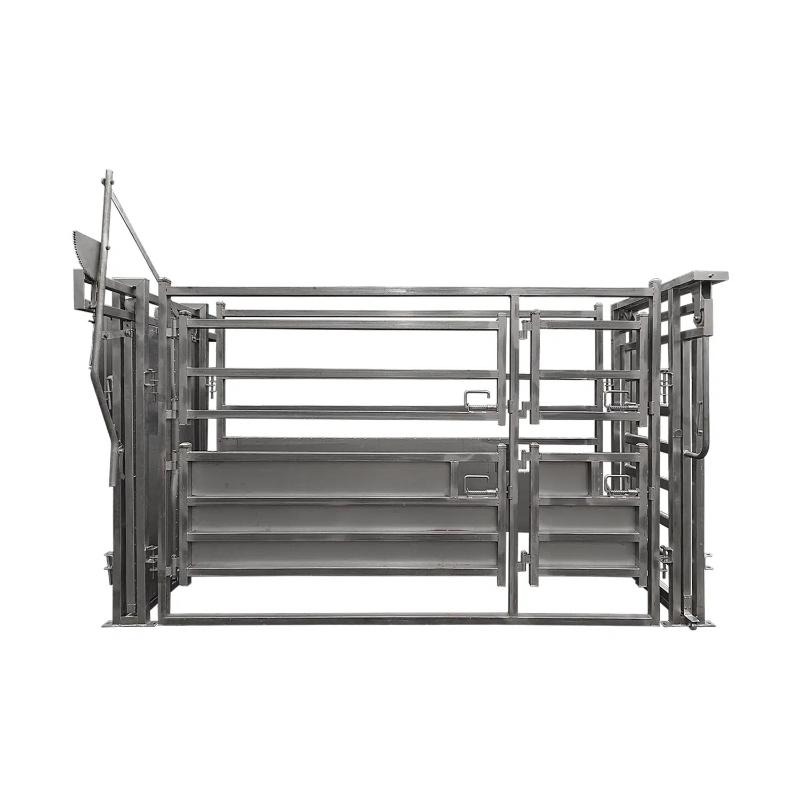

Super Rack Vet Cattle Crush Manual

Introducing The Vet Cattle Crush Manual

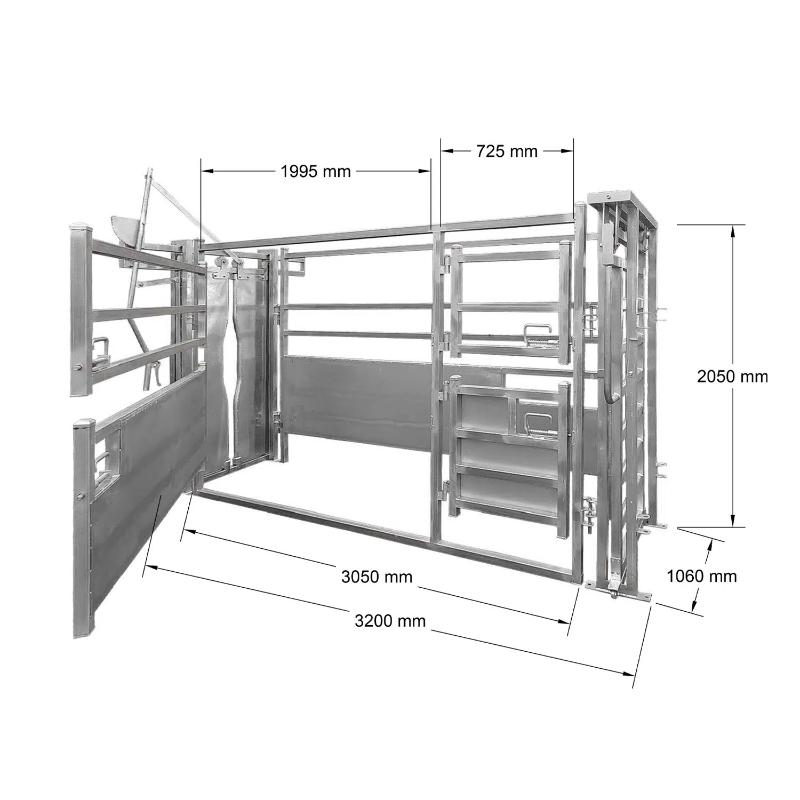

Size

3.2m L * 2m W * 2.3m H – Fully Open

The Vet Cattle Crush Manual Includes:

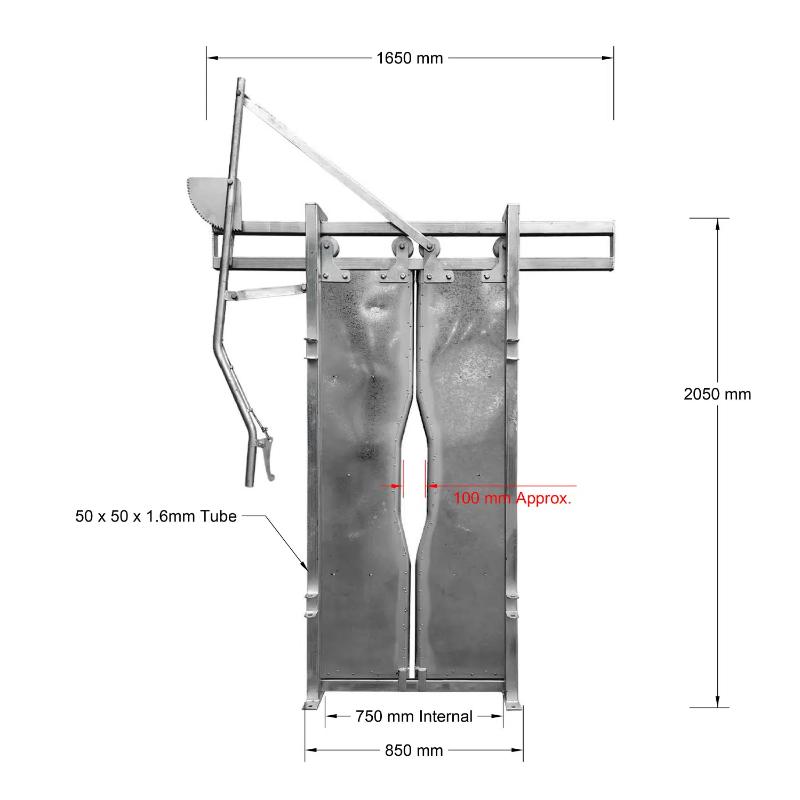

Manual Headbail

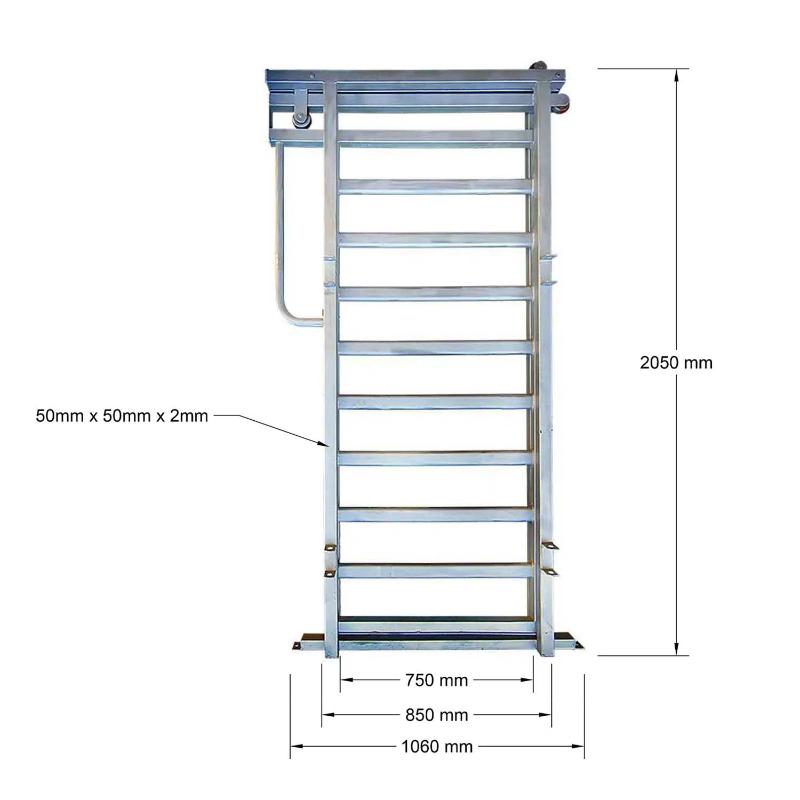

Sliding Gate
Vet Crush Side Panel
Vet Crush Side Gate

Vet Crush Side Panel

Cattle panel on one side
Manufactured from galvanised steel and the welds painted
Fully 360degree welded
2000mm high, 3050mm long.
All the tubes are 50x50x2mm
With 7 rails, 4 rails with galvanized sheet, 3 rails are not.
Galvanized sheet is 1.0mm thick.
With caps, lugs and pins
Weight: 85kg

Vet Crush Side Gate Panel

Cattle gate on the other side
2000mm high, 3050mm long.
All the tubes are 50x50x2mm
Total 4 doors, with spring latched lock
Longer door, internal wide is 1995mm
Smaller door, internal wide is 725mm
With caps, lugs and pins
Weight: 125kg
